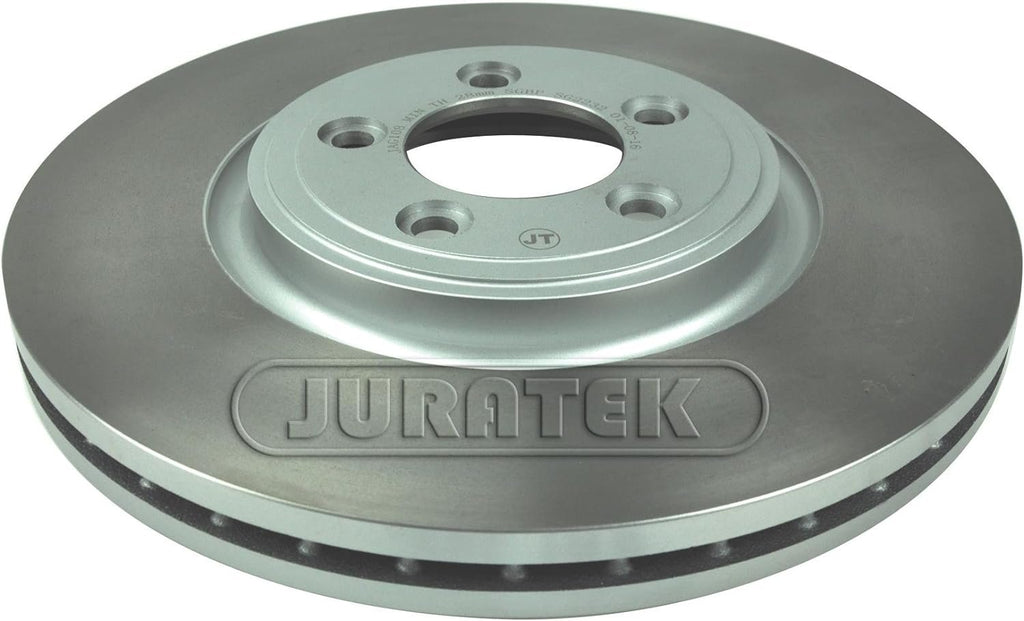

Juratek JAG108 - Brake Disc

Additional product data:

Bore Ø [mm]: 14.2

Minimum thickness [mm]: 28

Centering Diameter [mm]: 71

Bolt Hole Circle Ø [mm]: 108

Surface: Coated

Number of mounting bores: 5


Technical Information:Linked Parts:JCA1521L; JCA1521R Linked Parts:JCP8157 Linked Parts:JCW313

Equivalent Part Numbers: JAGUAR C2C25336

• Brake Disc Type:Vented, Outer Diameter [mm]:326, Chassis number from:G49701
• Height [mm]:46,2, Centering Diameter [mm]:71, Minimum Thickness [mm]:28.0
• Brake Disc Thickness [mm]:30, Minimum Thickness [mm]:28, Height [mm]:46.2
• Brake Disc Thickness [mm]:30.0, Number of Holes:5, Centering Diameter [mm]:71.0
• Number of mounting bores:5, Fitting Position:Front Axle
